Descrizione
The XFX ATI Radeon HD 5450 graphics card offers everything you need for gaming and HD home entertainment in one package. Do more on your PC with ATI stream technology, which accelerates even the most demanding applications. See more with ATI Eyefinity technology, providing the ultimate gaming experience by allowing up to three displays from a single graphics board. The XFX ATI Radeon HD 5450 fully supports Microsoft DirectX® 11 which enables real-time rendering with ultra-realistic characters and incredible 3D imagery.
Graphics for Virtually Everything
Consumes less than 45 Watts under full load, eliminating the need for an external power connection and making installation a snap. Expand your visual real estate across up to three displays using ATI Eyefinity technology that let you see more and get more done. Using ATI Stream technology, accelerate demanding applications and do more than ever with your PC. Experience amazing visual quality, and entertainment experience with Windows® 7 and DirectX® 11.
Eyefinity
ATI Eyefinity Technology allows two or more display outputs operating simultaneously and cooperatively with one another. Support is available for Duplicated (clone). Extended Monitor and Single large Surface mode (SLS). SLS mode is capable of grouping multiple displays into a single massive large display for use with desktop workspace, video playback, with support for both windowed and full screen 3D applications.
Microsoft DirectX® 11
Get amazing Eye-Definition graphics with DirectX® 11 technology. DirectX® 11 is the very latest in high-speed, high-fidelity gaming and computing. Featuring technologies like Compute Shaders, Direct2D, Multithreaded Rendering and Tessellation, DirectX® 11 can enable not just more visually stunning games, but significant performance improvements in some of your favorite websites and everyday applications.
Key Features
650 Mhz Core Clock
1000 Mhz Memory Speed
1024 MB DDR2 memory
80 Stream Processors
ATI Eyefinity technology with support for up to three displays (1, 4)
ATI Stream technology (2)
Designed for DirectCompute 11 and OpenCL
Accelerated Video Transcoding (AVT) (2, 5)
Compliant with DirectX® 11 and earlier revisions
Supports OpenGL 3.2 (6)
ATI Avivo HD video and display technology (3,7)
ATI PowerPlay technology (7)
PCI Express® 2.1 support
ATI Eyefinity Requirements
Windows Vista and Windows 7 operating system (Eyefinity is not supported in Windows XP)
A graphics card with at least one native DisplayPort output
Display with native DisplayPort
Use of an certified active DisplayPort adapter is required to convert the DisplayPort output on the graphics card to an output compatible to the display when more than two displays are used in a multi-display configuration (available for purchase separately)

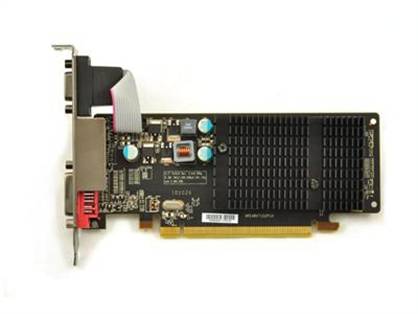

XFX Radeon HD 5450 HD-545X-ZCH2 1GB DDR3 PCI Express 2.1 x 16 Video Card – Low Profile
General
Brand XFX
Model HD-545X-ZCH2
Form Factor Low Profile
Highlights
XFX Radeon HD 5450 HD-545X-ZCH2 1GB DDR3 PCI Express 2.1 x16 Video Card. Form Factor: Low Profile. GPU: AMD Radeon HD 5450. Memory Type: DDR3. Memory Size: 1GB. Memory Interface: 64-bit. Interface: PCI Express 2.1 x16.
Specifications:
Interface PCI Express 2.1 x16
GPU AMD Radeon HD 5450
Core Clock 650MHz
Stream Processors 80 Stream Processing Units
Memory Clock 1066MHz
Memory Size 1GB
Memory Interface 64-bit
Memory Type DDR3
DirectX DirectX 11
OpenGL OpenGL 3.2
Ports HDMI: 1 x HDMI
D-SUB: 1 x D-SUB
DVI: 1 x DVI
RAMDAC 400 MHz
Max Resolution 2560 x 1600
Dual-Link DVI Supported Yes
HDCP Ready Yes
Card Dimensions 7.19 x 2.71 x 0.55
Features
ATI HyperMemory
ATI Stream Technology
HDMI Ready
Low Profile Compatible
